In this lab, you will use a few controls and write functions to handle user interaction with the controls. The first part will have you manage a lot within the forward-facing aspx file and a little within the code-behind aspx.cs file, while part 2 will have you do extensive C# code in the code-behind aspx.cs file.
Materials to turn in on the server:
In your Lab02 folder:
index.aspx
index.aspx.cs
table.aspx
table.aspx.cs
other associated files, images, etc.
Procedures
Create index.aspx to learn about the IDE and basic functionality
View this working solution
Create an aspx that has a simple form that requests:
first name,
last name,
city,
state,
zip code
The first name, last name, city, and zip code boxes use the <asp:TextBox> control
The state control uses <asp:DropDownList>
You can copy state from here and adjust as necessary:
None - not in U.S.
Alabama
Alaska
American Samoa
Arizona
Arkansas
California
Colorado
Connecticut
Delaware
District of Columbia
Federated States of Micronesia
Florida
Georgia
Guam
Hawaii
Idaho
Illinios
Indiana
Iowa
Kansas
Kentucky
Louisiana
Maine
Marshall Islands
Maryland
Massachusetts
Michigan
Minnesota
Mississippi
Missouri
Montana
Nebraska
Nevada
New Hampshire
New Jersey
New Mexico
New York
North Carolina
North Dakota
Northern Mariana Islands
Okio
Oklahoma
Oregon
Palau
Pennsulvania
Puerto Rico
Rhode Island
South Carolina
South Dakota
Tennessee
Texas
Utah
Vermont
Virgin Islands
Virginia
Washington
West Virginia
Wisconsin
Wyoming
Include an <asp:Button> control to submit the information.
Create a Label to display your name in using <asp:Label> controls.
Create a Label to display the information after submission using <asp:Label> controls.
Create a Label for each one of the above controls, except the Button.
Inside of the aspx.cs file (Code Behind file), add C# code
Include in the Page_Load method a statement that will change the value of the first Label to be your name.
Write a function that will execute when the button is clicked
In the function, grab the values from the controls and store them into the second Label control.
Create table.aspx and table.aspx.cs
View this working solution
There is no functionality beyond the page loading in the browser. All of the functionality occurs in your code when it is executed on the server, prior to delivering the end result to the browser.
Here are some images you can use with this assignment
In table.aspx.cs, declare instances of:
System.Web.UI.WebControls.Table
System.Web.UI.WebControls.TableRow
System.Web.UI.WebControls.TableCell
In table.aspx, add an asp:Panel inside the div with an ID of myTable
In Page_Load()
Instantiate new instances of Table, TableRow, and TableCell
Add content and formatting to TableCell
Use Controls.Add() to:
Add TableCell to TableRow
Add TableRow to Table
Add Table to Panel

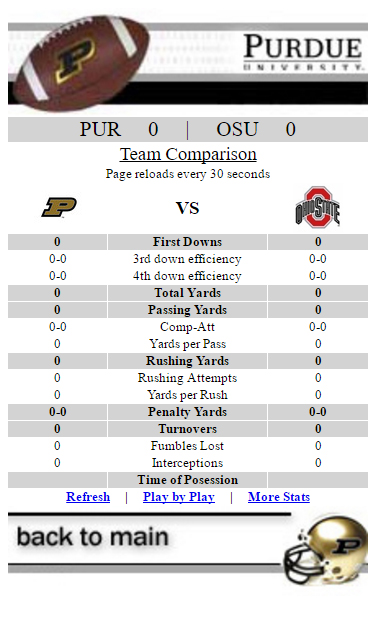

Recreate this table as best you can
Table width = 360
Code - not the exact code, but will show you how to create and add table rows, cells, etc.
Grading
Does it work
4 pts
Part 1
8 pts
Part 2
8 pts
Total
20 pts
