The 3 Pillars of OOP

Instructions

First, you will work through an example of inheritance, encapsulation, and polymorphism together as a class. Then you will complete a second example on your own for added practice.

Materials to turn in:

• Lab06 Project Folder
• Lab06.master
• Lab06.master.cs
• default.aspx
• default.aspx.cs
• dog.aspx
• dog.aspx.cs
• Dog.cs
• Poodle.cs
• phones.aspx
• phones.aspx.cs
• CellPhone.cs
• Motorola.cs
• Razr.cs
• images and other associated project files

Procedures (together as a class)

1. Master Pages
• Set some aesthetic properties of the master page
  • In design view, you can use the Properties panel to adjust properties.
• Add 4 <div> elements to the master page
  • In the first <div>, add an Image control out of the Toolbox.
  • In the second <div>, add a navigation Menu out of the Toolbox that points to the two content pages you're going to create (default.aspx, phone.aspx, dog.aspx)
    • drag the navigation menu on to the source code view where you want it.
    • switch to design view and use the control to add the menu items.
  • In the body <div>, add a <span> element. In the span, put the ContentPlaceHolder.
  • In the last <div>, add copyright text

2. Add a content page (default.aspx) that references your master page for this part. Your output for this part should be written to the ContentPlaceHolder or a control that you place within it.

3. Inheritance
• Inheritance allows code reuse by building on existing classes. It is the concept of deriving classes from a base class where the derived class "is a" one of the base class.
• Create a new Class: Dog
  • Give it two private strings: name, gender
  • In the constructor, initialize the name and gender to some default value

  • Create a function: Bark() that returns a string "ruff!"
• Create a new Class: Poodle
• Poodle must inherit from Dog -- Poodle : Dog
• Give it a private string: breed
• In the constructor, initialize the breed to: Poodle
• In default.aspx.cs
• Declare an instance of Poodle: puddle
• In Page_Load(), call puddle.Bark() and write out the value to the browser.
• Notice that Bark() is accessible for the Poodle, even though Bark() is defined in Dog.
• Notice that breed, name, and gender are not accessible because they have been defined using the private access modifier.
4. Encapsulation
• Encapsulation is a method of hiding object data and implementation details, but defining properties and methods to let the caller have access to it.
• Create a new public function that returns a string, inside of Poodle: getBreed()
• return the variable using .ToString()
• Create a new public function that returns a string, inside of Dog: getName()
• return the variable using .ToString()
• Create a new public function that accepts a string as a parameter, inside of Dog: setName(string n)
• set the name equal to the string that was passed into the function
• Create a new public function that returns a string, inside of Dog: getGender()
• return the variable using .ToString()
• Create a new public function that accepts a string as a parameter, inside of Dog: setGender(string g)
• set the gender equal to the string that was passed into the function

• In default.aspx.cs
• In Page_Load(), call puddle.getBreed(), getName(), getGender() and write them to the screen (format for legibility).
• Then use setName() and setGender() to change both the name and gender of the Poodle.
• Then call getName() and getGender() again and write them to the screen.

5. Polymorphism
• In C#, polymorphism means the ability for classes to share the same methods (actions) but implement them differently.
• Redefine Bark() in Poodle
• public new string Bark() -- return "ruff! ruff!" instead of just "ruff!"
• Notice that you will have to use the keyword new
• Notice when the page is reloaded in the browser that the function inside of Poodle is firing now instead of the function inside of Dog
• Congratulations - you have just accomplished polymorphism.

Procedures (on your own)

1. Add a second content page (phones.aspx) that references your master page for this part. Your output for this part should be written to the ContentPlaceHolder or a control that you place within it.

2. Inheritance
• Inheritance allows code reuse by building on existing classes. It is the concept of deriving classes from a base class where the derived class "is a" one of the base class.
• Create a new Class: CellPhone
  • Give it a private string: phoneType
  • In the constructor, initialize the phoneType to "flip phone"

  • Create a function: Ring() that returns a string "ring ring! ring ring!"
• Create a new Class: Motorola
• Motorola must inherit from CellPhone -- Motorola : CellPhone
• Give it a private string: network
• In the constructor, initialize network to: "GRSM"
• Create a new Class: Razr
• Razr must inherit from Motorola -- Razr : Motorola
• Give it a private string: phoneCompany
• Give it a private System.Drawing.Color: color
• In the constructor, initialize phoneCompany to: "AT&T", and color to: Blue
• In phones.aspx.cs
• Declare an instance of Motorola: moto
• Declare an instance of Razr: myRazr
• Declare another instance of Razr: yourRazr
• In Page_Load(), instantiate instances of moto, myRazr, and yourRazr
• In Page_Load(), call moto.Ring() and write out the value to the browser.
• In Page_Load(), call myRazr.Ring() and write out the value to the browser.
• In Page_Load(), call yourRazr.Ring() and write out the value to the browser.
• Notice that Ring() is accessible for the Motorola class, even though Ring() is defined in the CellPhone class.
• Also notice that Ring() is accessible for the Razr class, even though Ring() is defined in the CellPhone class.
• Notice that phoneType, network, color and phoneCompany are not accessible from either the Razr class or the Motorola class because they have been defined using the private access modifier.
3. Encapsulation
• Encapsulation is a method of hiding object data and implementation details, but defining properties and methods to let the caller have access to it.
• Create a new public function that returns a string, inside of CellPhone: getPhoneType()
• return the variable using .ToString()
• Create a new public function that returns a string, inside of Motorola: getNetwork()
• return the variable using .ToString()
• Create a new public function that returns a string, inside of Razr: getPhoneCompany()
• return the variable using .ToString()
• Create a new public function that accepts a string as a parameter, inside of Razr: setPhoneCompany(string pc)
• set phoneCompany equal to the string that was passed into the function
• Create a new public function that returns a System.Drawing.Color, inside of Razr: getColor()
• return the variable using .ToString()
• Create a new public function that accepts a string as a parameter, inside of Razr: setColor(System.Drawing.Color c)
• set the variable color equal to the color c that was passed into the function
• In phones.aspx.cs
• In Page_Load(), call moto.getPhoneType(), moto.getNetwork(), myRazr.getPhoneCompany(), myRazr.getColor(), yourRazr.getPhoneCompany(), and yourRazr.getColor() -- and write them to the screen (format for legibility).
• Then use myRazr.setPhoneCompany(), myRazr.setColor() to change the phoneCompany to "Verizon" and color to "Red".
• Then call myRazr.getPhoneCompany(), myRazr.getColor(), yourRazr.getPhoneCompany(), and yourRazr.getColor() again and write them to the screen.
• Notice that the values you set are inside the Razr class, however you only changed the values for myRazr and not for yourRazr.

4. Polymorphism
• In C#, polymorphism means the ability for classes to share the same methods (actions) but implement them differently.
• Redefine Ring() in Razr
• public new string Ring() -- return "bbbbbbbrrrrrrrrrrrrriiiiiiiiiiiiiiiiiinnnnnnnnggggg"
• Notice that you will have to use the keyword new
• Notice when the page is reloaded in the browser that the function inside of Razr is firing now instead of the function inside of CellPhone
• Notice that when moto.Ring() is called, however; it still says "ring ring! ring ring!"
• Congratulations - you have just accomplished polymorphism.

5. Your final output should look fairly similar to this:

• POODLE

  before
  arf! arf!
  Poodle
  female
  Sandy

  after
  male
  Sunny


  CELL PHONE

  moto: ring ring! ring ring!
  myRazr: bbbbbbbrrrrrrrrrrrrriiiiiiiiiiiiiiiiiinnnnnnnnggggg
  yourRazr: bbbbbbbrrrrrrrrrrrrriiiiiiiiiiiiiiiiiinnnnnnnnggggg

  before
  moto: flip phone
  moto: GRSM
  myRazr: AT&T
  myRazr: Color [Blue]
  yourRazr: AT&T
  yourRazr: Color [Blue]

  after
  myRazr: Verizon
  myRazr: Color [Red]
  yourRazr: AT&T
  yourRazr: Color [Blue]

6. Code

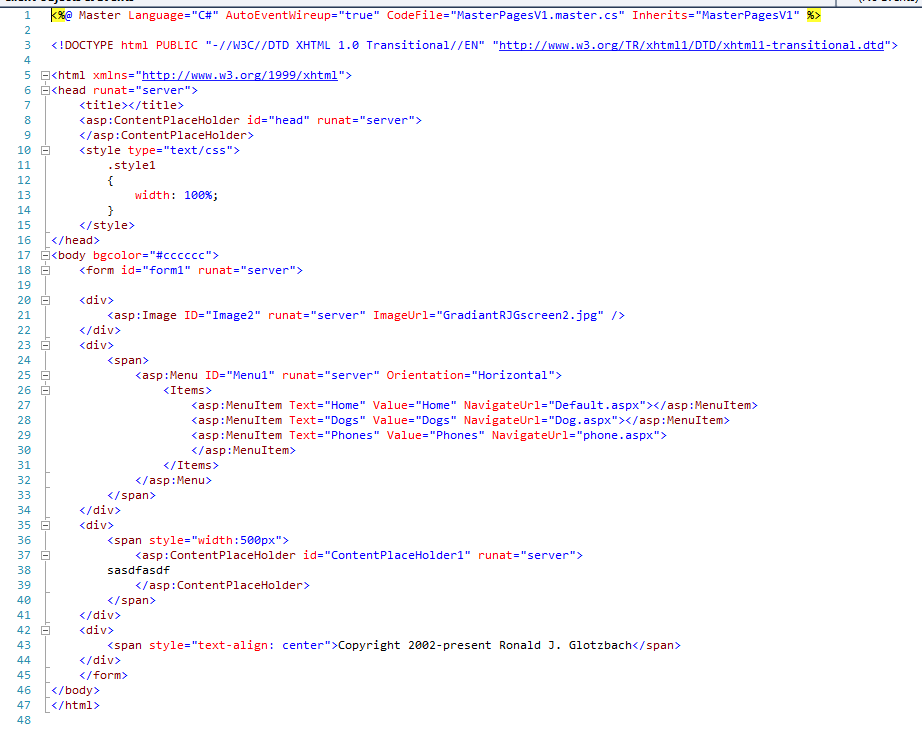

   • master page aspx
   • master page cs

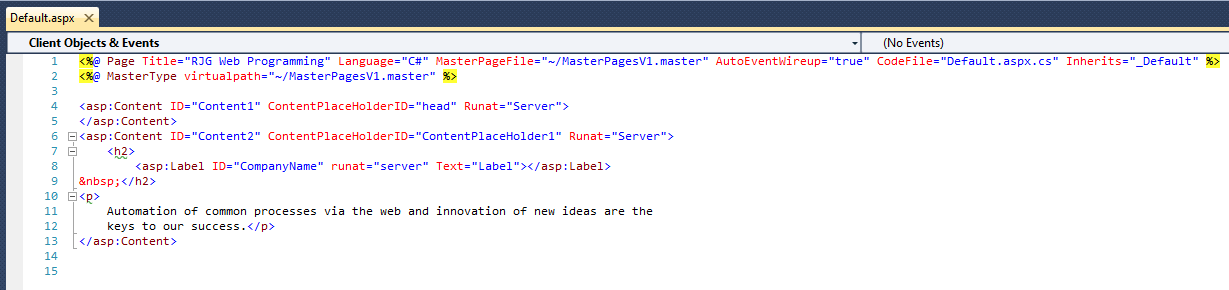

   • default aspx

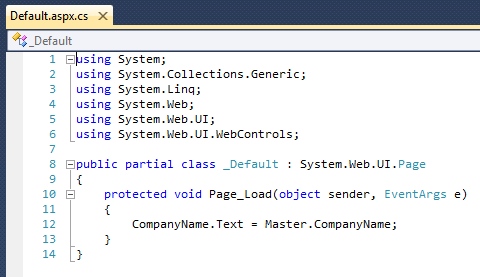

   • default cs

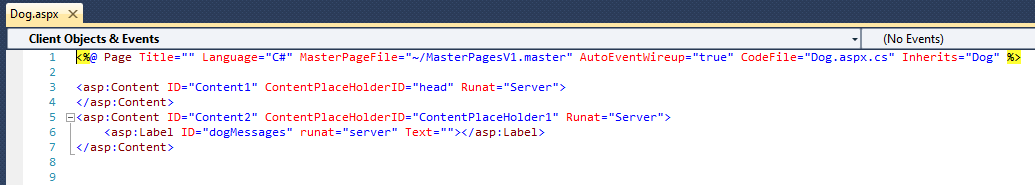

   • dog aspx

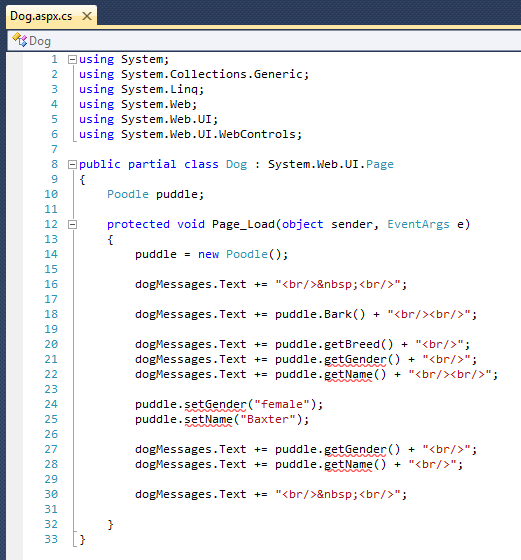

   • dog cs

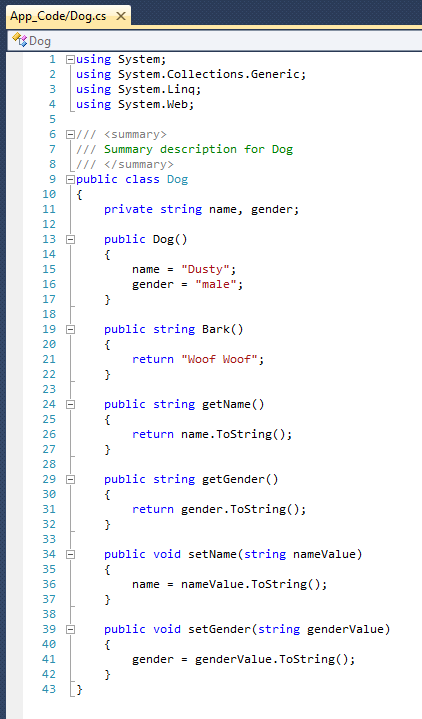

   • dog class cs
   • poodle class cs
   • Then you need to do: phone aspx, phone cs, phone class, motorola class, razr class
7. Images
   • VS master design

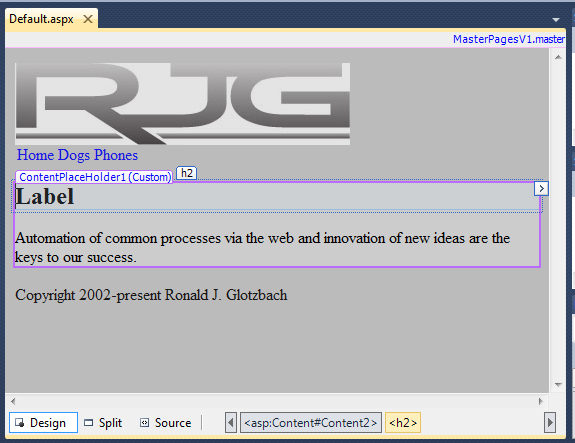

   • VS default design

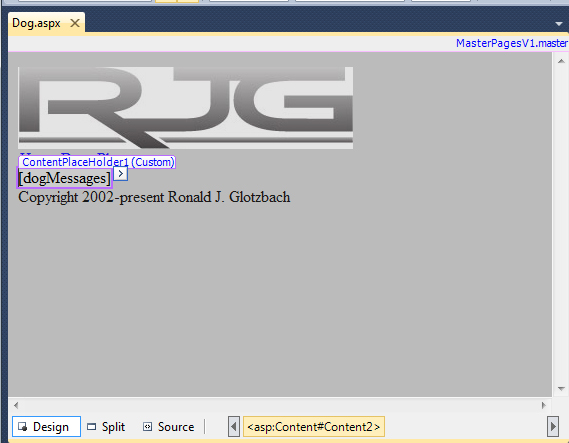

   • VS dog design
