This instruction is meant for use with Microsoft Windows 2000,
			but setup would be similar on other Windows operating systems.
			This also refers to setting up a Microsoft Access XP DSN,
			but once again, setting up other versions of Access would be similar.
			This is a quick reference and does not go in depth about each of the choices.
			Following these steps exactly will properly create a system DSN
			for a Microsoft Access database.
			(This page will take 2 min to download at 24.0 Kbps)

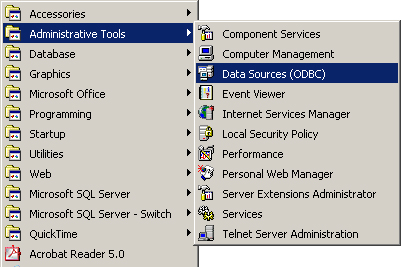

From the Start menu, go to Administrative Tools and
select Data Sources (ODBC)


OR










From Control Panel, open Administrative Tools








Then open Data Sources (ODBC)

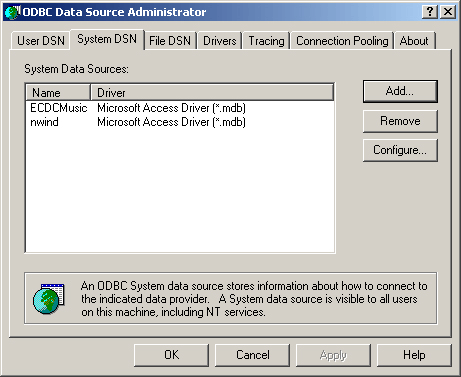

Click on the System DSN Tab, then click the Add... button





Choose the Microsoft Access driver from the list and click Finish

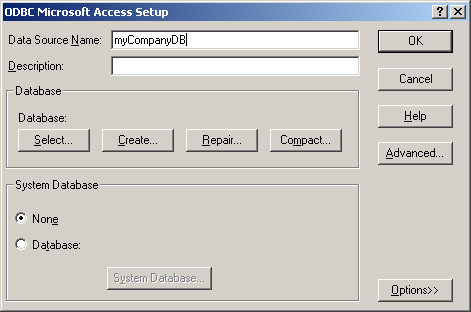

Name the DSN and provide a description if desired.
Then choose the Select... button





Navigate to the Microsoft Access Database on your computer.  Select the
database and the ODBC Microsoft Access Setup dialog box will update itself.
Click OK.

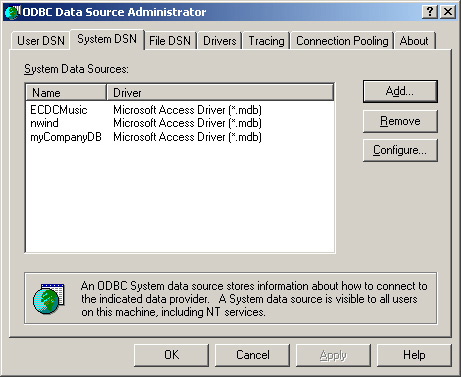

The final screen shows the new System DSN in the list
Click OK to close the ODBC Data Source Administrator.
